PFA Plastic Guide: Properties, Uses & Advantages [2025]

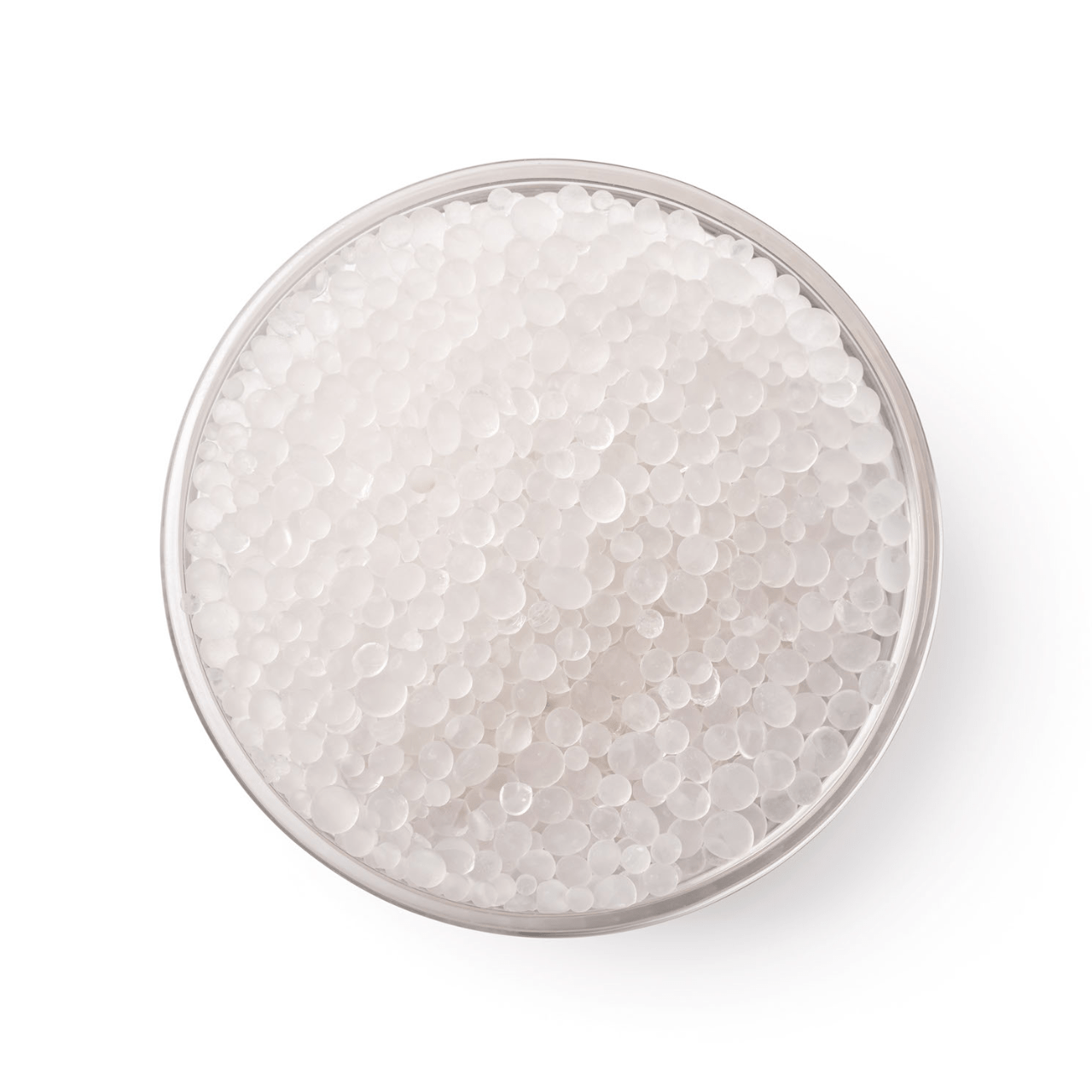

PFA (perfluoroalkoxy alkane) is a high-performance fluoropolymer thermoplastic that belongs to the perfluorinated polymer family, offering exceptional chemical resistance, thermal stability, and mechanical properties. Manufactured by copolymerizing tetrafluoroethylene (TFE) with perfluorinated vinyl ethers, PFA combines the superior performance characteristics of PTFE (polytetrafluoroethylene) with true melt-processability, making it suitable for injection molding, extrusion, and other conventional thermoplastic processing methods. This fluoropolymer material serves critical applications in pharmaceutical manufacturing, semiconductor fabrication, chemical processing, and medical device production where contamination prevention, chemical inertness, and high purity are non-negotiable requirements.

What Is PFA Plastic and How Does It Work?

PFA's exceptional performance stems from its fully fluorinated carbon backbone structure, where all hydrogen atoms are replaced with fluorine atoms, creating one of the strongest chemical bonds in polymer science (C-F bond energy of 485 kJ/mol).

According to DuPont's technical data sheets, this molecular architecture gives PFA a dielectric constant of 2.1, tensile strength of 3,000-4,500 psi, and elongation at break of 300-400%. The material's semi-crystalline structure (crystallinity of 60-70%) provides mechanical strength while maintaining enough amorphous regions for optical transparency and flexibility.

Major manufacturers including Chemours (Teflon™ PFA), Daikin (Neoflon™ PFA), Solvay (Hyflon™ PFA), and AGC Chemicals (Fluon™ PFA) produce PFA resins with specific formulations optimized for different applications. The resin melt flow rate (MFR) typically ranges from 2-30 g/10 min, allowing processors to select grades appropriate for thin-wall molding, thick-section parts, or tubing extrusion applications.

What Are the Key Properties and Characteristics of PFA?

Physical and Mechanical Properties

• Density: 2.12-2.17 g/cm³ (higher than most conventional plastics but lower than PTFE at 2.2 g/cm³)
• Tensile Strength: 20.7-31 MPa (3,000-4,500 psi) at 23°C according to ASTM D638
• Flexural Modulus: 550-690 MPa (80,000-100,000 psi) providing rigidity while maintaining flexibility
• Elongation at Break: 300-400% enabling excellent flex life in dynamic applications
• Hardness: Shore D 55-60 offering abrasion resistance while preventing scratching of contact surfaces
• Impact Strength: No break in Izod impact test, demonstrating superior toughness

Thermal Properties

• Melting Point: 302-310°C (576-590°F) allowing true thermoplastic processing
• Continuous Service Temperature: -200°C to 260°C (-328°F to 500°F) per UL 746B
• Thermal Conductivity: 0.195 W/m·K providing good insulation properties
• Coefficient of Linear Thermal Expansion: 13-14 x 10⁻⁵ mm/mm/°C requiring consideration in precision applications
• Heat Deflection Temperature: 58°C at 0.45 MPa (66 psi) per ASTM D648
• Flammability Rating: UL 94 V-0 classification with oxygen index >95%, essentially non-flammable

Electrical Properties

• Dielectric Constant: 2.1 at 1 MHz (one of the lowest among polymers)
• Dielectric Strength: 19.7 kV/mm (500 V/mil) providing excellent insulation
• Dissipation Factor: 0.0002 at 1 MHz indicating minimal energy loss
• Volume Resistivity: >10¹⁸ ohm-cm making PFA an outstanding insulator
• Surface Resistivity: >10¹⁴ ohm/square preventing static charge accumulation

Chemical and Environmental Properties

• Chemical Resistance: Inert to virtually all industrial chemicals including concentrated sulfuric acid, nitric acid, aqua regia, chlorine, and organic solvents
• Water Absorption: <0.03% (essentially zero) eliminating dimensional changes from moisture
• UV Resistance: Excellent stability with <5% property degradation after 10,000 hours exposure
• Weather Resistance: Superior outdoor durability with no degradation from ozone, moisture, or temperature cycling
• Permeability: Low gas permeability making it ideal for containing volatile chemicals
• FDA Compliance: 21 CFR 177.1550 approval for repeated food contact applications

Surface Properties

• Coefficient of Friction: 0.2-0.3 (dynamic), among the lowest of all solid materials
• Surface Energy: 18-19 dynes/cm providing excellent non-stick characteristics
• Surface Smoothness: Ra <0.4 μm minimizing particle adhesion and contamination
• Anti-Stick Properties: Virtually nothing adheres to PFA surfaces without surface treatment

What Are the Primary Applications and Uses of PFA Plastic?

Semiconductor and Electronics Manufacturing

• Chemical Delivery Systems: Ultra-high purity tubing, fittings, and valves for transporting corrosive process chemicals (hydrofluoric acid, sulfuric acid, hydrogen peroxide) in wafer fabrication
• Wafer Processing Equipment: Wet benches, etching tanks, and cleaning stations requiring chemical resistance and particle-free surfaces
• Process Chamber Components: Liners, insulators, and seals in CVD, PVD, and etching equipment operating at elevated temperatures
• Wire and Cable Insulation: High-frequency cable jacketing for data transmission with minimal signal loss (dielectric constant 2.1)
• Carrier Baskets: Wafer carriers and transport containers preventing contamination during processing

Pharmaceutical and Biotechnology

• Sterile Fluid Transfer: Single-use and reusable tubing systems for drug formulation, filling operations, and cleanroom processing
• Bioreactor Components: Seals, gaskets, and fluid contact parts in fermentation vessels and cell culture equipment
• Filling and Packaging Systems: Pump diaphragms, valve seats, and flow paths in aseptic filling machines
• Chromatography Systems: HPLC tubing, fittings, and flow cells requiring chemical compatibility with mobile phases
• Storage Containers: Bottles and carboys for storing corrosive reagents and high-purity solvents

Medical Devices and Healthcare

• Vascular Catheters: Cardiovascular catheters, guidewires, and introducer sheaths leveraging PFA's lubricity and biocompatibility
• Intravenous Delivery: IV tubing and connectors for administering chemotherapy drugs and other caustic medications
• Surgical Instruments: Insulation for electrosurgical devices and protective coatings for delicate instruments
• Diagnostic Equipment: Blood analysis tubing, sample handling systems, and reagent containers
• Implantable Components: Long-term implant encapsulation and protective coatings requiring biocompatibility

Chemical Processing Industry

• Pump Components: Diaphragms, bellows, and seals in chemical transfer pumps handling corrosive media
• Valve Components: Seats, balls, and diaphragms in control valves exposed to aggressive chemicals
• Vessel Linings: Sheet linings for steel reactors, storage tanks, and scrubbers protecting against corrosion
• Heat Exchangers: Tube linings and gaskets enabling heat transfer with corrosive fluids
• Piping Systems: Pipe liners and expansion joints in chemical transfer systems

Laboratory and Analytical Applications

• Sample Containers: Bottles, vials, and beakers for trace element analysis preventing metallic ion contamination
• Tubing Systems: Peristaltic pump tubing, transfer lines, and sample introduction systems
• Analytical Instruments: ICP-MS sample introduction systems, ion chromatography components, and spectroscopy cells
• Reaction Vessels: Digestion bombs, reaction flasks, and synthesis equipment for harsh chemical reactions
• Filtration Systems: Filter housings and membrane supports for corrosive filtration applications

Aerospace and Automotive

• Fuel System Components: Fuel lines, seals, and gaskets resistant to aviation fuels and additives
• Hydraulic Systems: Hoses and seals for high-pressure hydraulic fluids
• Wire Harnesses: Primary wire insulation and cable jacketing for aircraft electrical systems
• Environmental Control: Ducting and seals in air management systems

How Is PFA Used in Encapsulation Applications?

The encapsulation process typically uses compression molding or injection molding techniques to apply 0.25-1.0mm thick PFA layers over metal substrates. According to manufacturer specifications from Marco Rubber, encapsulated O-rings can withstand pressures up to 3,000 psi and temperatures from -20°C to 230°C while maintaining seal integrity. Common encapsulation applications include:

• O-Ring Encapsulation: Protecting elastomer or metal O-rings from chemical attack while maintaining sealing force and resilience
• Spring Coating: Covering compression and wave springs to prevent corrosion in chemical valve applications
• Sensor Protection: Encasing temperature probes, pressure transducers, and level sensors for immersion in aggressive media
• Probe Covers: Sheathing pH electrodes, conductivity probes, and analytical sensors
• Gasket Manufacturing: Creating composite gaskets combining PFA's chemical resistance with metal's compression resistance

PFA encapsulation offers significant cost advantages over solid PFA parts, reducing material costs by 60-75% while delivering equivalent chemical performance. The technique is particularly valuable in semiconductor applications where ultra-high purity is required but solid fluoropolymer components would be prohibitively expensive.

Why Is PFA Tubing Preferred in Critical Applications?

PFA tubing is manufactured through continuous extrusion processes with tight dimensional tolerances (±0.005" on bore diameter) and consistent wall thickness. Standard sizes range from 1/16" to 1" OD with wall thicknesses from 0.020" to 0.125". According to technical specifications from Saint-Gobain Performance Plastics, PFA tubing can be heat-formed, flared, and fusion-welded to create custom fluid handling assemblies without adhesives or mechanical fittings that could introduce contamination.

Key Advantages of PFA Tubing

• Ultra-High Purity: Extractables <10 ppb meeting semiconductor SEMI standards and USP Class VI requirements
• Chemical Compatibility: Resistant to all acids, bases, solvents, and oxidizers except fluorine gas and molten alkalis
• Temperature Range: Continuous operation from -200°C to 260°C without property degradation
• Pressure Rating: Burst pressure >1,000 psi for 1/4" OD tubing with 0.030" wall
• Flex Life: >100,000 cycles at 90° bend radius of 6x OD without cracking
• Optical Clarity: Light transmission >85% enabling fluid visualization and bubble detection
• Surface Smoothness: Bore surface roughness <0.4 μm Ra reducing particle entrapment
• Permeation Resistance: <0.05 g/m²/day water vapor transmission rate
• Sterilization Compatible: Withstands autoclave, gamma radiation, and chemical sterilization

Industry-Specific PFA Tubing Applications

• Semiconductor: Chemical distribution manifolds, point-of-use filters, and tool chemical supply lines
• Pharmaceutical: Peristaltic pump tubing, filling machine transfer lines, and WFI distribution systems
• Medical: Blood transfer sets, chemotherapy administration, and endoscope reprocessing channels
• Laboratory: Autosampler tubing, fraction collection lines, and reagent delivery systems
• Analytical: ICP-MS sample introduction, HPLC column connections, and GC inlet lines
• Chemical: Sampling systems, metering pump connections, and corrosive chemical transfer

What Makes PFA Superior to Other Plastic Materials?

PFA Advantages Over Conventional Thermoplastics

• vs. Polyethylene (PE): PFA operates 180°C higher, resists all chemicals vs. limited acid resistance, and provides 10x lower permeation
• vs. Polypropylene (PP): PFA withstands oxidizers that attack PP, operates at 100°C higher temperature, and maintains properties in UV exposure
• vs. PVDF: PFA resists strong bases that degrade PVDF, provides lower friction, and offers superior purity for semiconductor applications
• vs. PEEK: PFA resists strong acids that attack PEEK, offers lower extractables for pharmaceutical use, and provides non-stick surface properties

PFA Advantages Over Other Fluoropolymers

• vs. PTFE: PFA is melt-processable enabling injection molding and complex geometries, offers better flex life in tubing applications, and provides translucency for visual inspection
• vs. FEP: PFA operates 60°C higher (260°C vs. 200°C), exhibits 40% higher tensile strength, and demonstrates superior stress crack resistance in dynamic applications
• vs. ETFE: PFA provides better chemical resistance especially to strong oxidizers, operates 110°C higher, and offers lower permeability to gases and vapors

Critical Selection Factors Favoring PFA

• Electrical Performance: Dielectric constant of 2.1 (lowest among processable thermoplastics) makes PFA ideal for high-frequency applications
• Permeation Barrier: Extremely low gas and liquid permeation prevents contamination in chemical storage and sampling systems
• Surface Properties: Self-lubricating surfaces with coefficient of friction 0.2-0.3 reduce wear and prevent sticking
• Weatherability: Unlimited outdoor exposure without UV degradation or property loss
• Regulatory Compliance: FDA 21 CFR 177.1550, USP Class VI, and 3-A Dairy approvals enable food and pharmaceutical use
• Purity: Extractables <10 ppb meeting stringent semiconductor and pharmaceutical requirements

What Are the Limitations and Considerations for PFA?

Chemical Limitations

• Molten Alkali Metals: Sodium, potassium, and lithium in molten state attack PFA's carbon-fluorine bonds
• Elemental Fluorine: Fluorine gas at elevated temperatures and pressures can cause degradation
• Chlorine Trifluoride: This powerful oxidizer attacks PFA at elevated concentrations
• 80% Sodium Hydroxide: Concentrated caustic solutions above 150°C can cause stress cracking

Mechanical Considerations

• Creep Susceptibility: PFA exhibits cold flow under sustained load requiring design considerations
• Impact Resistance: While tough, PFA can crack under high-velocity impact at cryogenic temperatures
• Abrasion Resistance: Softer than many engineering plastics, requiring protective measures in high-wear applications
• Compression Set: Exhibits higher permanent deformation than elastomers in static seal applications

Processing Challenges

• High Processing Temperature: Requires melt temperatures of 340-400°C necessitating specialized equipment
• Mold Release: Excellent release properties can cause ejection issues in complex geometries
• Weld Line Strength: Flow fronts create weak points requiring gate optimization
• Dimensional Stability: High thermal expansion requires careful mold design and post-molding considerations

Economic Factors

• Material Cost: $40-70/lb resin cost vs. $10-15/lb for PTFE and $2-5/lb for conventional plastics
• Processing Cost: High processing temperatures increase energy costs and cycle times
• Tooling Investment: Requires corrosion-resistant molds capable of high temperatures
• Minimum Order Quantities: Custom formulations and colors require large volume commitments

How Is PFA Material Processed and Fabricated?

Injection Molding Parameters

• Barrel Temperature: Zone 1: 340°C, Zone 2: 360°C, Zone 3: 380°C, Nozzle: 390-400°C
• Mold Temperature: 175-230°C (higher temperatures improve crystallinity and surface finish)
• Injection Pressure: 10,000-20,000 psi depending on part geometry and wall thickness
• Hold Pressure: 40-60% of injection pressure applied for 10-20 seconds
• Back Pressure: 50-150 psi to ensure melt homogeneity
• Screw Speed: 50-100 rpm (slower speeds reduce shear degradation)
• Cooling Time: 30-90 seconds depending on wall thickness

Extrusion Processing

• Barrel Temperature Profile: 340-400°C with gradual increase toward die
• Die Temperature: 380-410°C for optimal melt flow
• Screw Design: Single-stage or two-stage screws with L/D ratio 20:1 to 30:1
• Draw Down Ratio: 2:1 to 10:1 depending on product (tubing vs. film)
• Cooling Method: Water bath or air cooling maintaining dimensional control

Secondary Operations

• Machining: CNC machining possible using sharp carbide tools and flood coolant
• Welding: Hot gas welding, fusion welding, and ultrasonic welding for joining components
• Heat Forming: Thermoforming at 280-320°C for custom shapes
• Bonding: Requires sodium etching or plasma treatment followed by adhesive application
• Annealing: Post-molding stress relief at 260°C for 2-4 hours improves dimensional stability

Frequently Asked Questions About PFA Plastic

Is PFA the same as Teflon?

PFA is a type of Teflon fluoropolymer manufactured by Chemours (formerly DuPont). "Teflon" is a brand name that encompasses multiple fluoropolymers including PTFE, FEP, and PFA. While all Teflon products share excellent chemical resistance and low friction, PFA specifically offers the advantages of melt-processability and higher flex life compared to PTFE, making it preferable for tubing and complex molded components.

Can PFA be sterilized?

Yes, PFA can be sterilized using multiple methods including steam autoclave (121°C, 15 psi, 20 minutes), gamma radiation (25-50 kGy), ethylene oxide gas, and chemical sterilants such as hydrogen peroxide plasma and peracetic acid. PFA maintains its properties through repeated sterilization cycles, making it ideal for reusable medical devices. Studies show <5% property degradation after 1,000 autoclave cycles.

What is the difference between PFA and PTFE tubing?

PFA tubing offers superior flex life (>100,000 flex cycles vs. <50,000 for PTFE), translucency for visual inspection (vs. opaque PTFE), better kink resistance, and heat weldability for creating custom assemblies. PTFE tubing provides slightly better chemical resistance to fluorine compounds and operates at marginally higher temperatures (288°C vs. 260°C). For dynamic applications and visual monitoring, PFA is preferred; for the absolute highest temperature and chemical resistance, PTFE is chosen.

Is PFA plastic safe for food contact?

Yes, PFA is FDA approved for repeated food contact under 21 CFR 177.1550. It exhibits no migration of additives or extractables, resists staining and odor absorption, and can be cleaned with harsh sanitizers. PFA is used in food processing equipment including pump diaphragms, valve seats, and transfer tubing for acidic products, dairy, and beverages. It meets 3-A Dairy Standards and European Regulation (EU) No 10/2011 for food contact materials.

How do you join PFA components?

PFA can be joined using several methods: (1) Heat fusion welding where mating surfaces are heated to 340°C and pressed together creating molecular bonding; (2) Hot gas welding using nitrogen or inert gas at 400°C with PFA welding rod; (3) Ultrasonic welding for thin-wall parts; (4) Mechanical compression fittings for tubing connections; (5) Surface treatment (sodium etching or plasma) followed by structural adhesives for permanent bonds. Heat fusion provides the strongest joints with >90% of base material strength.

What causes PFA to crack or fail?

PFA failure typically results from: (1) Stress cracking under sustained tensile load especially when combined with chemical exposure; (2) Thermal cycling beyond design limits causing dimensional fatigue; (3) Exceeding the 260°C continuous use temperature leading to oxidative degradation; (4) Improper annealing leaving residual stresses that propagate; (5) Sharp corners or notches creating stress concentration points; (6) Exposure to molten alkali metals or fluorine gas; (7) UV exposure combined with sustained stress. Proper design, annealing, and stress management prevent most failures.

Can PFA be machined?

Yes, PFA can be machined using CNC milling, turning, and drilling operations. Best practices include: using sharp carbide or diamond-coated tools, maintaining flood coolant to prevent heat buildup, employing high cutting speeds (300-600 sfm) with low feed rates, providing adequate support to prevent flexing, and using razor-sharp tools to prevent tearing. PFA machines more easily than PTFE due to its higher tensile strength and lower tendency to cold-flow. However, PFA stock is less commonly available than PTFE, making molded or extruded parts more economical for most applications.

What is the shelf life of PFA material?

Properly stored PFA resin has an indefinite shelf life as it is chemically inert and does not oxidize or degrade. Manufacturers recommend storage in sealed containers away from UV light, though PFA exhibits excellent UV resistance. Fabricated PFA parts similarly have unlimited shelf life when stored away from molten alkali metals and fluorine gas. This exceptional stability makes PFA ideal for critical spare parts that may sit unused for years before installation.

How much does PFA cost compared to other plastics?

PFA resin costs approximately $40-70 per pound, compared to PTFE at $10-15/lb, FEP at $30-50/lb, PVDF at $12-18/lb, and commodity plastics like polyethylene at $1-2/lb. Despite the higher material cost, PFA often delivers better total cost of ownership in critical applications due to: longer service life (10-20 years typical), elimination of expensive alloys (Hastelloy, titanium), reduced maintenance and downtime, prevention of product contamination, and elimination of frequent replacement. For high-purity pharmaceutical and semiconductor applications, PFA's purity justifies the premium pricing.

Can PFA be recycled?

Yes, clean PFA scrap can be reprocessed and recycled. Manufacturers offer recycling programs accepting production scrap, purged material, and end-of-life components. Recycled PFA (rPFA) is reground, cleaned, and recompounded, typically mixed with virgin resin at 10-25% ratios for non-critical applications. However, recycling is limited because: (1) Contamination with other plastics ruins the batch; (2) Thermal history degrades molecular weight slightly; (3) Collection and transportation costs often exceed virgin material value for small quantities; (4) Critical applications require virgin material certification. Industrial scrap is most economically recycled, while consumer PFA (laboratory bottles, tubing) is rarely recycled due to contamination concerns.

Conclusion: PFA Plastic as the Premium Fluoropolymer Solution

PFA (perfluoroalkoxy) represents the optimal balance of chemical resistance, thermal performance, and processability in the fluoropolymer family. Its unique combination of melt-processability (unlike PTFE), high temperature capability (260°C continuous use), superior flex life, and exceptional purity makes it the material of choice for critical applications in semiconductor manufacturing, pharmaceutical production, medical devices, and chemical processing.

While PFA commands a price premium over conventional plastics and even other fluoropolymers, its comprehensive performance profile - including resistance to virtually all chemicals, lowest friction coefficient, excellent electrical properties, FDA compliance, and unlimited service life - delivers superior total cost of ownership in demanding applications. The material's versatility in processing methods (injection molding, extrusion, compression molding) enables complex geometries impossible with PTFE while maintaining 95% of PTFE's legendary chemical resistance.

For engineers and procurement specialists evaluating materials for corrosive, high-purity, or high-temperature applications, PFA should be strongly considered when: chemical resistance to strong acids, bases, or oxidizers is required; operating temperatures exceed 200°C; optical transparency is needed for process monitoring; ultra-high purity prevents contamination; or long-term reliability in harsh environments is critical. With proper material selection, design considerations, and processing techniques, PFA delivers decades of reliable performance in the world's most demanding industrial applications.
